Understanding Characteristics Of Mosfet, FET AND UJT
Description & Specification

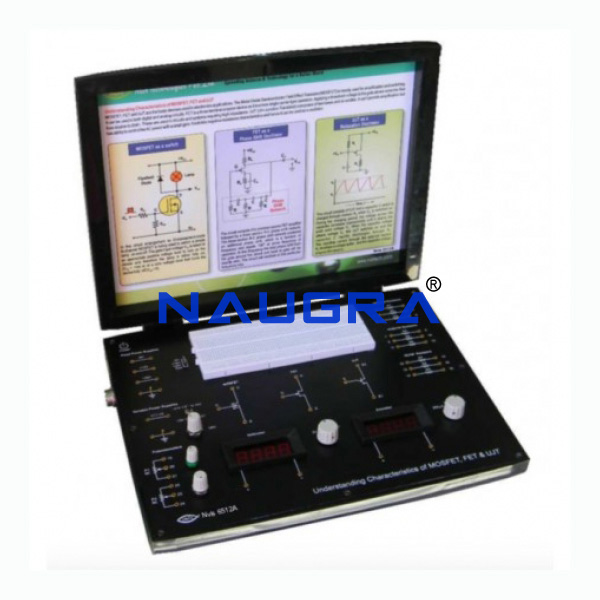

Understanding Characteristics of MOSFET, FET & UJT is a compact, ready to use experiment board. This is useful for students to plot different characteristics of n-channel MOSFET, n-channel FET and UJT and to understand operation of these power electronics devices in various regions. Using this product student can also evaluate FET parameters (Drain resistance, Tran’s conductance, and Amplification factor) & UJT parameters (Inter base resistance and intrinsic standoff ratio). In-built DC power supply, voltmeter and ammeter with DPM features make this product easy to operate and can be used as standalone system. Breadboard allows student to construct circuits using external components along with on-board resources Understanding Characteristics of MOSFET, FET and UJT is an ideal platform to enhance education, training, skills & development among our young minds.
FEATURES:-
Generalized design
Standalone operation
Inbuilt fixed and variable power supply
Toggle switch for selection of variable power supply
Inbuilt Ammeter and Voltmeter
Bread board
Resistance bank
10 turn potentiometer
SCOPE OF LEARNING:-
To study and plot the Drain Characteristics of n channel MOSFET
To study and plot the Transfer Characteristics of n channel MOSFET
To study and plot the V-I characteristics of JFET Evaluation of following parameters of JFET: DC Drain resistance, Trans conductance, Amplification factor
To plot the VI characteristics of UJT Evaluation of following parameters of UJT: Intrinsic Stand-off Ratio, Inter base resistance
TECHNICAL SPECIFICATIONS:-
Mains Supply : 90-230V, 50Hz
DC Fixed Power Supply : -5V, +15V, +35V
DC Variable Power Supply :1.5V to 14 V 1.5V to 34V
Voltmeter : 0-200V
Ammeter : 0-200Ma
Bread Board Distribution strips : 2
Distribution holes : 200
Terminal Strips : 1
Terminal holes : 640
Variable Resistances: 5 KW Ten turn Potentiometer
10 KW Ten turn Potentiometer
5 KW Single turn Potentiometer
Fuse : 500 mA, slow blow
