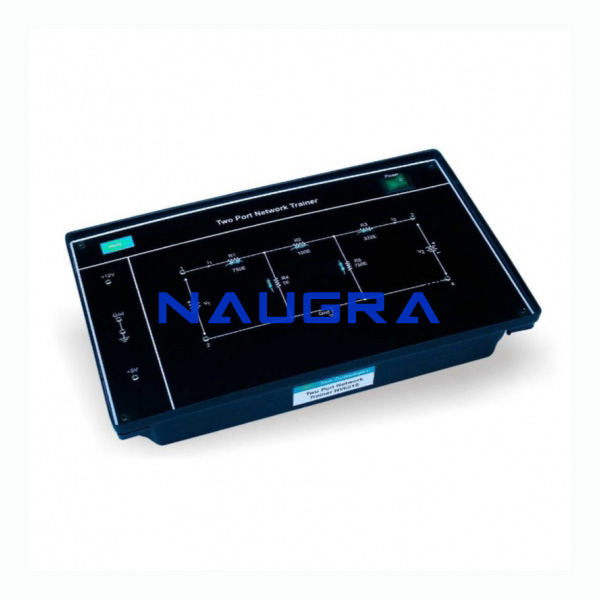

Two Port Network Trainers
Description & Specification
Two Port Network Trainers has been designed specifically for the Two Port Network analysis. This is useful for students to study the operation and behavior of any two-port network under several operating conditions. The study of two-port network is very important as they form the building block of most electrical systems. On this training system, we can calculate various parameters under open circuit and short circuit conditions. Experimental calculations of Z-Parameters, Y-Parameters and ABCD-Parameters of a two port network can be easily measured. In-built DC power supply is provided. Two Port Network Trainers is an ideal platform to enhance education, training, skills & development among our young minds.
FEATURES:-
Easy experimental illustration of Two Port Network analysis
Inbuilt +12 V and +5 V DC Power Supplies
Low cost
E-Manual
SCOPE OF LEARNING:-
Study of Z-Parameters of a Passive Two Port Network
Study of Y-Parameters of a Passive Two Port Network
Study of ABCD-Parameters of a Passive Two Port Network
TECHNICAL SPECIFICATIONS:-
Mains Supply : 230 V ±10%, 50 Hz
DC Power Supplies : +12 V, +5 V
