Understanding Network Theorems
Description & Specification

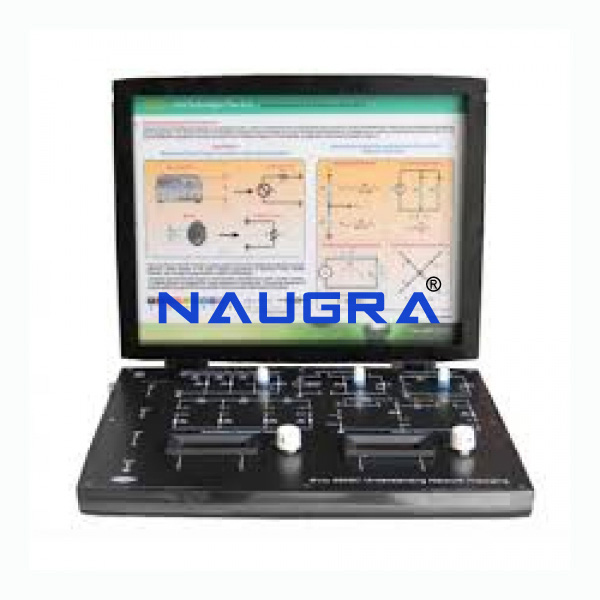

Understanding Network Theorems is a compact, ready to use experiment board and has been designed specifically for the study & verification of network theorems in DC circuits.
In network analysis, the fundamental rules are ohm’s law and Kirchhoff’s laws. These laws may be applied to analyze any circuit configuration but for solving complex circuits, use of “Network theorems” is much better because it simplifies the analysis of complicated circuits.
Theorems are explained in a single circuit so that student can compare these theorems with each other.
Superposition and Reciprocity theorems are also explained in a single circuit. The product is designed and presented in such a way that student can easily measure all the electrical parameters like voltage, current and resistance.
FEATURES:-
Exclusive and compact design
In-built power supply
Constant current source
On board Voltmeter & Ammeter
Straight forward representation of all theorems
On board equivalent circuits
Potentiometer is provided to vary load resistance
Learning material CD.
TECHNICAL SPECIFICATIONS:-
Mains power supply : 90 – 270V ±10%, 50Hz
DC power supply : +5V, Regulated
+12V, Regulated
Constant Current Source : 3.2 mA
Voltmeter Range : 200mV to 20V
Ammeter Range : 200µA to 200Ma.
