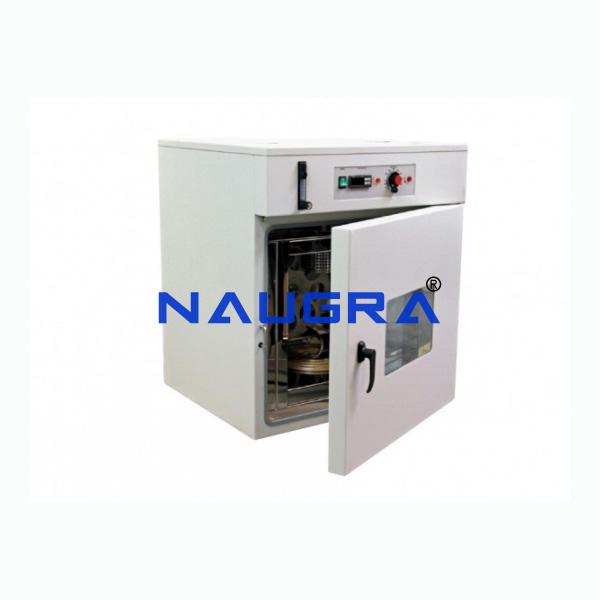

Thin Film Oven

Thin Film Oven

---

When the bitumen is heated it loses the volatility and gets hardened. About 50gm of the sample is weighed and heated to a temperature of 163 °C for 5 hours in a specified oven designed for this test. The sample specimen is weighed again after the heating period and loss in weight is expressed as percentage by weight of the original sample. Bitumen used in pavement mixes should not indicate more than 1% loss in weight, but for bitumen having penetration values 150-200 up to 2% loss in weight is allowed.

Features:-
±1°C Digital Temperature Controller
Interior chamber is made from stainless steel
The unit is well insulated and has a double glass door for viewing the test chamber
Calibrated scale and tamper-proof lock
Two rotating platforms of 13.5 inches dia are supplied to perform both the tests
On/Off switch for the turntable motor
Precise, Hot Air Drying
Better Mineral / Blanket Insulation for high Temperature & to avoid heat loss
Silent Hot Air Blower, Unique design of Air Circulation provide throughout uniform Air movement
Unique design of ventilation keeps the surface of the instruments from being Burnt even when the instruments i.e. Oven Temperature maintained at 200°C
Polish / Hair Line 304 grade S. Steel sheet interior, long operation, corrosion resistant
Kanthal Super quality coil shaped & Air heater tubular model wound on side/on the back of the Oven for better accuracy
Full feature with Digital Temperature Controller cum Indicator having Alarm facility (On Customer request)
Toughened Glass view window to observe /Test the material without disturbing the Temperature condition of the chamber.
Working Temperature required as per 163°C ± 1°C
Provide with detachable metal shaft (Thin Film Oven)
Reduction gear is fitted from outside rotated by a vertical shaft having 5-6 RPM

Technical Specification:-
Control Panel Mains Load Indicator Fine Temperature Controller, Digital Temperature
Controller, Fan Switch, Rotating Motor, Control Switch
Temperature Range Ambient to ± 250°C, Controlled from 60°C – 250°C
Temperature Stability ±1°C or better
Housing Material CRC/ MS Sheet Duly Powder Coated
Power Consumption 230V AC Supply 50 Hz Single Phase
Safety Function Temp. Oven Shoot Alarm
Interior S. Steel 304 Grade Steel Sheet
Temperature Setting 1°C
Temperature Sensitivity 1°C
Communication Interface

Accessories:-
Sample Container (Loss on Heating Test)
Rotating Shelf (Loss on Heating Test)
Rotating Shelf (Thin Film Test)
Thermometer
Power supply 220-240VAC, 50hz, 1500 watts, 6.5 amps
