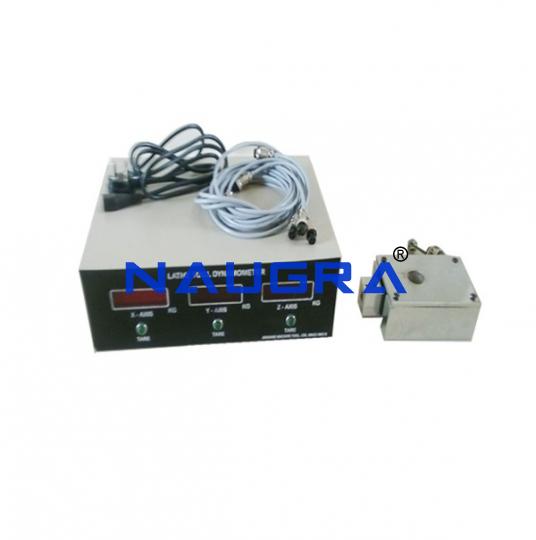

Lathe Tool Dynamometer
Description & Specification
Lathe tool dynamometers to measure cutting forces on various machines.
All three-direction forces are measured simultaneously and displayed.
The dynamometers are also available in various capacities as per customer requirement.
Tool dynamometers are useful to study, analyses the optimum feed, speed and depth of cut on different materials.
FEATURES:
The instrument comprises of a lathe tool dynamometer, which can be mounted on any conventional lathe machine.
It has three Digital indicators to individually indicate the forces in X, Y & Z direction.
SPECIFICATION:
Capacity: up to 500 Kgf in X, Y & Z direction
Tool Size: 20 mm square
Dynamometer mounting hole: 25 mm dia Hole to mount sensor on tool post.
Sensor Type: Strain gauge based
Connection: 9 pin D connector with shielded cable.3 meter length.
Housing: Metal Enclosure with chrome plating.
Display: 3 independent for X, Y & Z force.3 digit LED display.
Power: 230V 50 Hz
Enclosure: Powder coated metal box.400 (L) x300 (W) x100H
Resolution: 1 kg for all the 3 components.
Recorder o/p: Analog output for connects any recorder. Or data logger provided.
Zero Balancing: Corse and fine potentiometer on front panel.
Accessories: 20mm HSS tool bit- 1 No.
