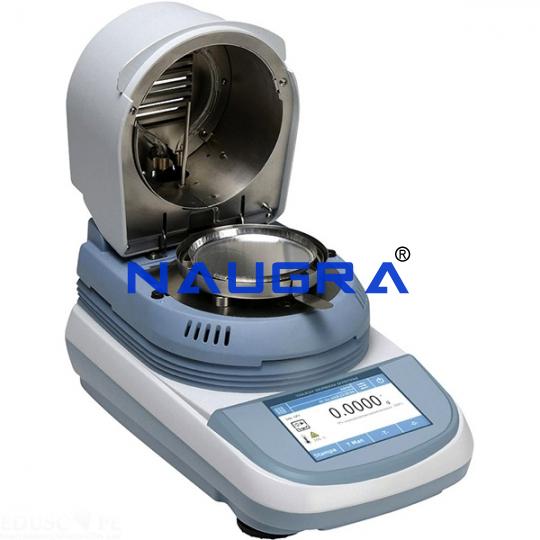

TVET Moisture Analyser
Description & Specification
The moisture analyser is a sturdy instrument for the determining of moisture in raw materials in finished samples of food, cosmetics and ceramics it would often be used also in the agriculture and construction industries.
Capacity: 160g
Resolution: 0.001g (0,01%)
LCD with backlight
Halogen-infrared lamp
Temperature range: 35-160°C/1°C
Specifications :
Pan Diameter: 110mm
Heater :
Heat Source: Halogen Infrared Lamp
Temperature Sensor: PT-100
Temperature Range: 50°C - 160°C
Temperature Steps: 1°C
Temperature Compensation (2 points): 80°C - 150°C
Temperature Slew Rate: 30°C/min
Moisture Analysis :
Moisture Range: 0.00% - 100%
Moisture Readability: 0.01%
Dry Residual Range: 100.00% - 0.00%
Dry Residual Readability: 0.01%
ATRO: 100% - 999%
ATRO: 0% - 999%
Moisture Precision :
Sample Weight (2g – 10g): 0.05% - 0.5%
Interface: RS232
Weighing System :
Capacity: 160g
Resolution: 0.001g
Repeatability: 0.002
Linearity: plus/minus 0.003g
Operating Temperature Range: 5°C - 35°C
