TVET Vee Bee Consistometer

Name: TVET Vee Bee Consistometer
Brand: TVETLABS
SKU: TVETLABS-LAB270036

TVET Equipment Code TVETLABS-LAB270036

Manufacturer TVETLABS India

Quality ISO 9001:2015

Description & Specification

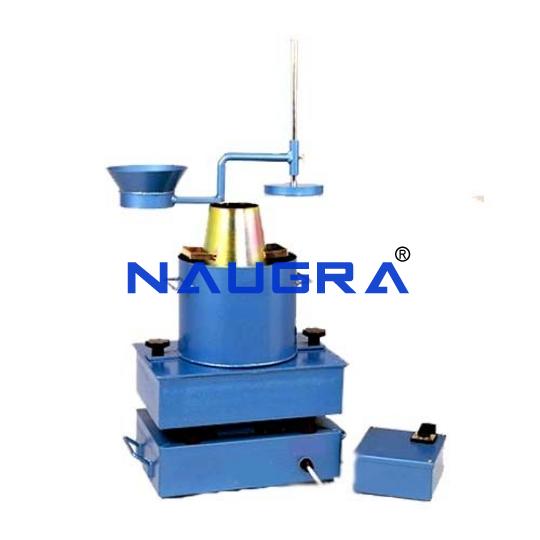

TVET Vee Bee Consistometer

A slump Cone and a graduated rod with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc.

The instrument is used for workability as well as consistency of fresh concrete.

The equipment consists of :

A holder is fixed to the base in to which a swivel arm is telescoped with funnel and guide swivel arm is also detachable the vibrating table.

The divisions of scale on the rod record the slump of the concrete in millimeters.

A vibrating table size 380 mm long and 260 mm wide, resting upon elastic support at a height of about 305 mm above the floor, complete with Start/Stop switch, cord and plug.

A slump cone open at both ends with lifting handles and a tamping rod of size 16 mm dia and 600 mm long rounded at both ends.

Complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table.
