About this TVET Equipment

TVET Compression Testing Equipment Manually Hand Operated is suitable for Vocational Lab, Industrial Training Institutions, TVET Engineering Colleges and Polytechnics — suitable for Civil and Mechanical Engineering Lab tender supply.

This TVET Compression Testing Equipment Manually Hand Operated is part of our TVET Engineering Lab Equipment tender catalogue covering Workshop Machines & Accessories, CAD/CAM Lab, Measurement Lab, Refrigeration & Air Conditioning Lab, Materials Testing Lab, Applied Mechanics Lab, Fluid Mechanics Lab, Turbo Machinery Lab, Heat & Mass Transfer Lab, Thermal Engineering Lab, Automobile Engineering Lab, Concrete Testing Lab, Cement Testing Lab, Soil Testing Lab, Bitumen Asphalt Testing Lab, Aggregate Testing Lab, Steel Testing Lab, Structural Engineering Lab, Environmental Testing Lab and Surveying Lab Equipment.

Concrete Testing Lab Equipment

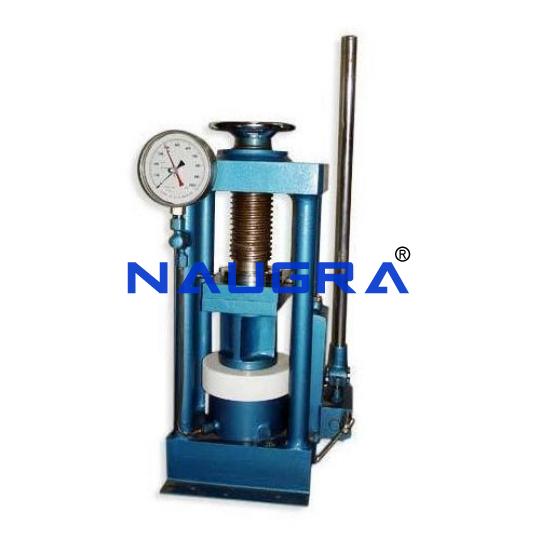

TVET Compression Testing Equipment Manually Hand Operated

Name: TVET Compression Testing Equipment Manually Hand Operated
Brand: TVETLABS
SKU: TVETLABS-LAB270038

TVET Equipment Code TVETLABS-LAB270038

Manufacturer TVETLABS India

Quality ISO 9001:2015

Description & Specification

TVET Compression Testing Equipment Manually Hand Operated

These strength testing equipment are extremely handy and are easy to use for testing cement, concrete and mortar cubes.

We lay utmost importance on equipment design and construct with emphasis on ease of operation.

Compressive Strength Testing Equipment to test cement, brick and concrete is offered by us. The range we offer includes Manually (Hand) Operated, Semi Automatic Compression Testing Equipment, Electrically Cum Manually Operated equipment and more.

Compression Testing Equipment Manually (Hand) Operated fitted with single load gauge.

The loads are measured on Bourdon tube type load gauges which are calibrated against certified proving rings.

The load gauges are fitted with a maximum load pointer.

Specifications:

Pressure Gauge Diameter (mm): 150

Vertical Daylight (mm): 320 (Adj)

Capacity (In kN): 1000 kN

Pressure Gauge (In kN): 1000 kN

Least Count (In kN): 5 kN

Ram Travel (mm): 50

Cube: 100mm, 150 mm

Cylindrical: 100 mm x 200 mm, 150 mm x 300 mm

Brick: 100 x 100 x 220 mm

Horizontal Clearance (mm): 260

Platen Size (mm): 220 x 165

Ram Diameter (mm): 165
